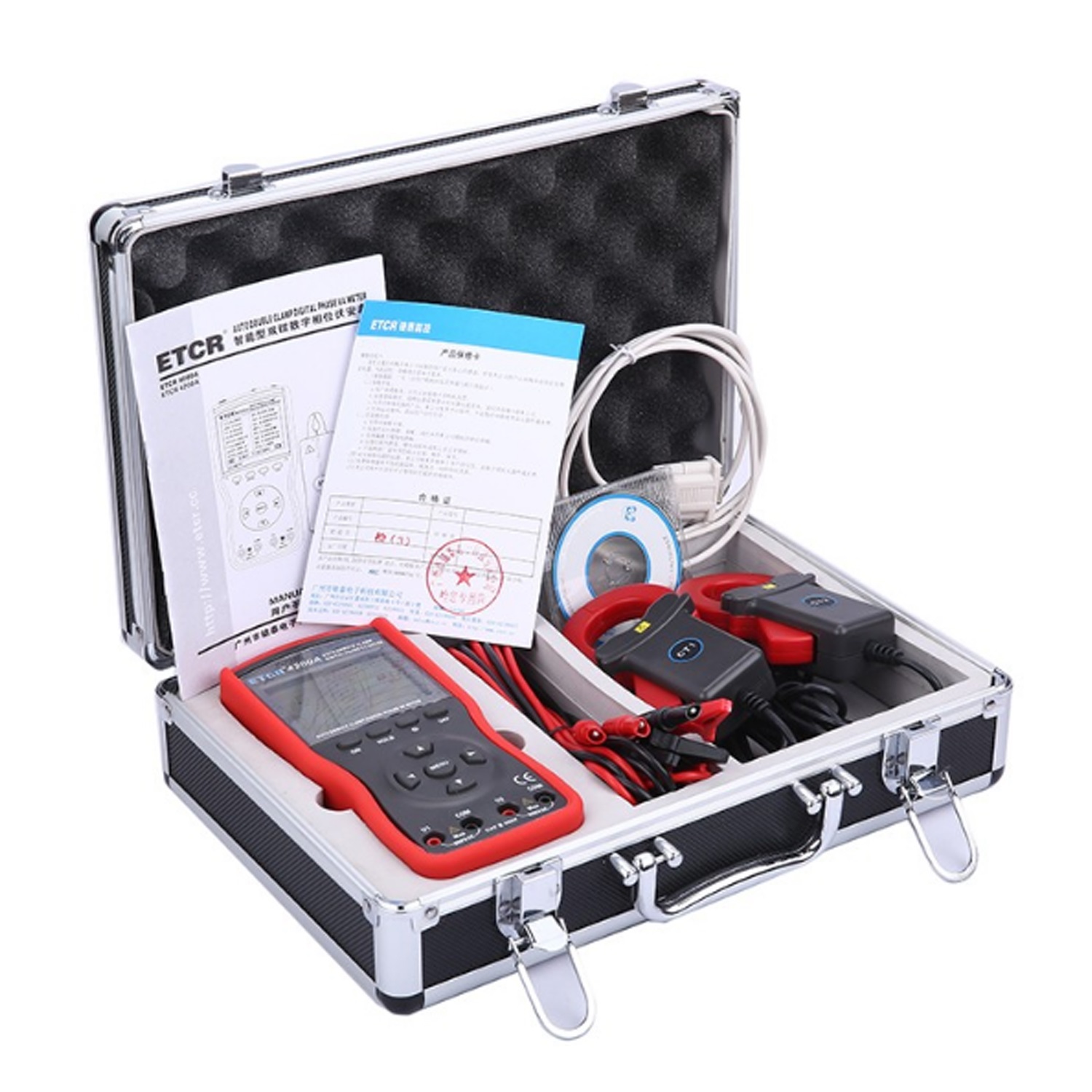

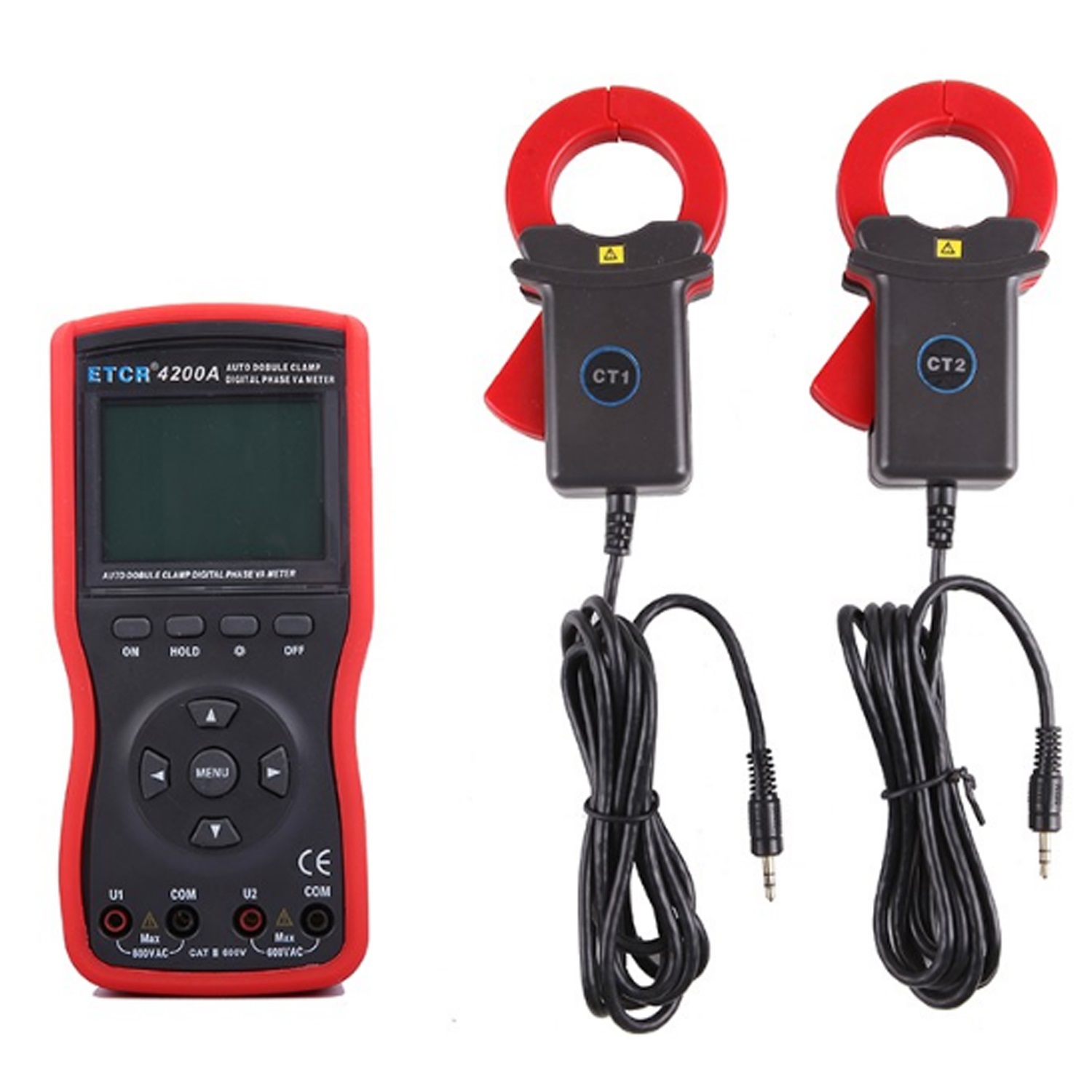

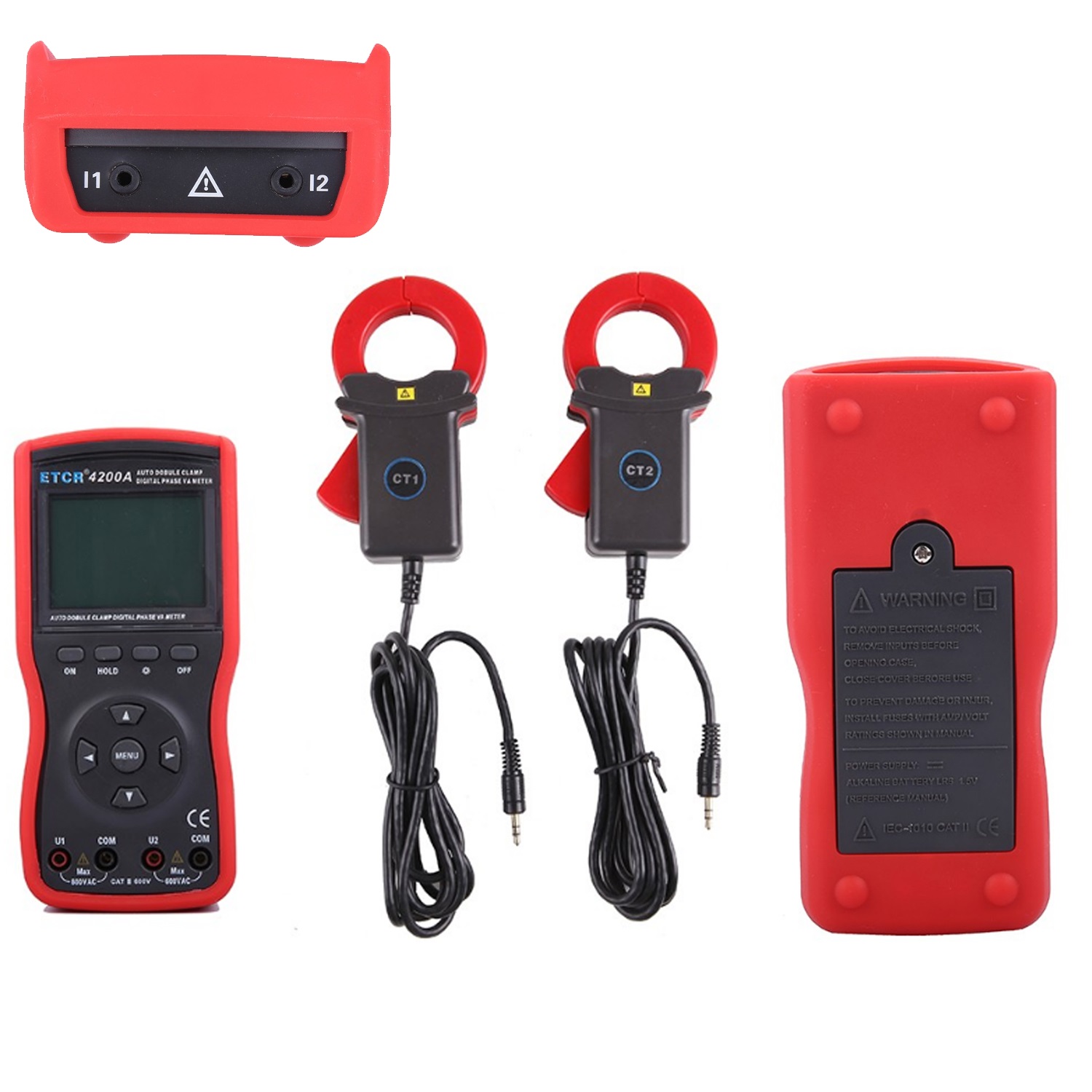

Intelligent Double Clamp Digital Phase Volt-Ampere Meter ETCR4200A

<p>ETCR4200A Intelligent Double Clamp Digital Phase Volt-Ampere Meter is a well-developed full-automatic, multi-functional, digital, intelligent meter </p><p>Apply to electric power, petroleum chemical industry, metallurgy, railway, and meteorology, industrial and mining enterprises, scientific research institutions, measurement sector and so on. </p><p>ETCR4200A Intelligent Double Clamp Digital Phase Volt-Ampere Meter has well designed shell mould made of newest material, attach with shakeproof, skidproof, high insulation sheath, has a 240dots×160dots LCD screen, all the test data display on the screen simultaneously, vector diagram indication, and looks exquisite and comfortable. </p><p>Meter equipped with USB-RS232 interface, can store 500 sets of data, through the system software upload stored data to the computer, implementing online real-time monitoring and historical inquires, dynamic display. </p><p>Can read, save, report, print history data, etc. Its big round clamps are applicable to thick wire detection.</p>

• Specification
• Power supply : DC9V 5th battery 1.5V(LR06)x6
• Jaw size : 35mmX40mm
• LCD Size : 2.8 inch TFT
• Range :
• Voltage range: AC 0.00V ~ 600V; Resolution: AC 0.01V
• Current range: AC 0.0mA～20.0A; Resolution: AC 0.1mA
• Phase Range: 0.0°~360.0°; Resolution: 0.1°
• Frequency range: 45.00Hz～65.00Hz; Resolution:0.01Hz
• Active power range: 0.0W ~ 12kW; Resolution: 0.1W
• Reactive power range: 0.0VAR ~ 12kVAR; Resolution: 0.1var
• Apparent power range: 0.0VA ~ 12kVA; Resolution: 0.1VA
• Power due to the range: -1 ~ +1; Resolution: 0.001
• Resolution :
• Voltage Range: Resolution: AC 0.01V
• Current Range: Resolution: AC 0.1mA
• Phase Range: Resolution: 0.1°
• Frequency Range: Resolution: 0.01Hz
• Active power range: Resolution: 0.1W
• Reactive power range: Resolution: 0.1var
• Apparent Power Range: Resolution: 0.1VA
• Power due to range: Resolution: 0.001
• Accuracy: ±0.5% of range
• Data Storage : 1500 Groups
• Data upload function: USB interface, uploading data to the computer for analysis of management data
• Automatic Shutdown : 15 minutes Automatic Shutdown
• Power : Open backlight: The maximum operating current is about 70mA, the battery works for 8 hours continuously
• : Off-backlight: The working current is about 40mA, the battery works for 12 hours continuously
• Working environment: -10°C～40°C; 80%Rh
• Storage environment: -10°C～60°C; 70%Rh
• Amplitude range of the signal under test when measuring phase: When measuring U1-U2 phase: 30V～500V
• : When measuring U1-I2 or I1-U2 phase: 10V～500V, 10mA～10.00A
• Test line length : 1.5 meters
• Current clamp wire length : 2 meters
• Measurement time : 2 seconds/times
• Data Hold : Press HOLD key to hold data during test, “DH” symbol display
• Input Impedance : Test Voltage Input Impedance: 1MΩ
• : The voltage input impedance when measuring U1U2 phase is: 40KΩ
